How to Replace CB4 V10 Control Board in WhatsMiner M21s?

Cryptocurrency mining has evolved into a highly specialized industry, requiring robust and reliable hardware to maintain efficiency and profitability. Among the critical components of mining rigs, control boards play a pivotal role in managing operations and ensuring optimal performance. The CB4 V10 control board is a standout solution designed specifically for the WhatsMiner M21s and other M-series models. This article provides a comprehensive guide on how to replace the CB4 V10 control board in WhatsMiner M21s, along with insights into its features and advantages.

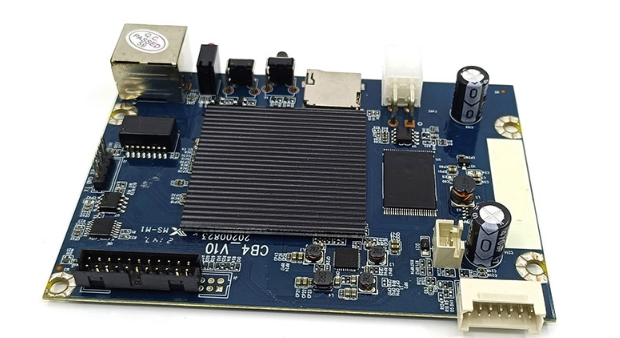

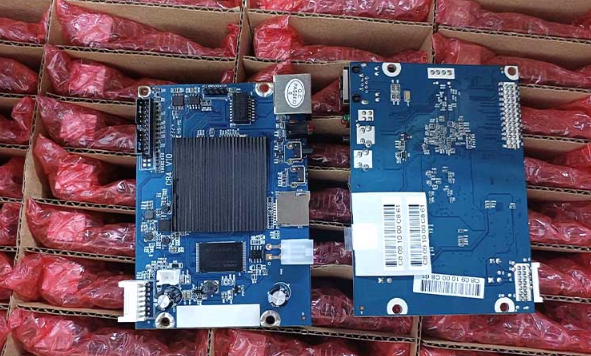

Introduction to the CB4 V10 Control Board

The CB4 V10 control board is a professional-grade component engineered to enhance the performance and reliability of WhatsMiner M-series mining rigs, including the M21s. Its advanced architecture ensures compatibility with a wide range of models, such as the M20s, M30s, M31s+, and M32s, making it a versatile choice for mining operators. The board’s design emphasizes durability, efficiency, and ease of maintenance, making it an essential upgrade for both new and existing mining setups.

Key technical specifications include:

• Connectivity: Single DVI port for monitoring and standard Ethernet connection for network integration.
• Power Delivery: IEC C19 16A connection for stable power supply.
• Operating Temperature Range: -5°C to 35°C, ensuring reliable performance in various environmental conditions.
• Warranty: Backed by a 160-day warranty, guaranteeing quality and reliability.

Why Replace the Control Board?

Control boards are the nerve center of mining rigs, responsible for managing hardware operations and ensuring efficient mining. Over time, these components may wear out or become outdated, leading to reduced performance or operational failures. Replacing the control board with a high-quality solution like the CB4 V10 offers several benefits:

• Enhanced Performance: Improved hashrate capabilities and operational efficiency.
• Reliability: Industrial-grade materials ensure stable operation in demanding environments.
• Compatibility: Seamless integration with multiple WhatsMiner models.
• Future-Proofing: Designed to adapt to evolving mining requirements.

Step-by-Step Guide to Replacing the CB4 V10 Control Board in WhatsMiner M21s

Replacing the control board in your WhatsMiner M21s is a straightforward process if done correctly. Follow these steps to ensure a smooth installation:

1. Prepare the Workspace

Before starting, ensure you have a clean, well-lit workspace with all necessary tools. You’ll need:

• A Phillips-head screwdriver.
• Anti-static wrist strap (to prevent electrostatic discharge damage).
• Replacement CB4 V10 control board.

2. Power Down the Miner

Safety is paramount. Turn off the WhatsMiner M21s and disconnect it from the power source. Allow the unit to cool down if it has been running recently.

3. Remove the Outer Casing

Use the screwdriver to remove the screws securing the outer casing of the miner. Carefully lift the casing to expose the internal components.

4. Locate the Old Control Board

Identify the existing control board within the miner. It is typically mounted near the power supply unit and connected via cables to other components.

5. Disconnect Cables

Gently disconnect all cables attached to the old control board. Take note of their positions or label them to ensure proper reconnection later.

6. Remove the Old Board

Unscrew the mounting screws securing the old control board. Carefully remove the board from the miner.

7. Install the CB4 V10 Control Board

Position the new CB4 V10 control board in place and secure it with the mounting screws. Reconnect all cables to their respective ports, ensuring a firm connection.

8. Reassemble the Miner

Replace the outer casing and secure it with screws. Double-check all connections and ensure everything is properly aligned.

9. Power Up and Test

Reconnect the miner to the power source and turn it on. Monitor the system to confirm that the new control board is functioning correctly and that the miner is operational.

Advantages of the CB4 V10 Control Board

1. Universal Compatibility

The CB4 V10 is designed to integrate seamlessly with various WhatsMiner models, providing a versatile solution for diverse mining setups. This compatibility ensures consistent performance across different rigs, simplifying maintenance and upgrades.

2. Industrial-Grade Reliability

Constructed with premium PCB materials and components, the CB4 V10 is built to withstand the rigors of professional mining environments. Its durable design ensures stable operation, minimizing downtime and maximizing profitability.

3. Optimized Performance Architecture

The CB4 V10’s all-in-one design delivers high hashrates while maintaining superior efficiency. This optimization is crucial for achieving maximum mining output and reducing energy costs.

4. Professional-Grade Connectivity

With enterprise-level power handling and reliable Ethernet networking, the CB4 V10 ensures stable operation in demanding mining environments. Its robust connectivity options enhance overall system reliability.

5. Thermal Management

Engineered to perform optimally across a wide temperature range, the CB4 V10 incorporates advanced thermal management capabilities. This feature is essential for sustained operation in varying environmental conditions.

6. Simplified Maintenance

The streamlined design of the CB4 V10 facilitates straightforward installation and maintenance procedures. This simplicity reduces operational downtime and technical complexity, allowing miners to focus on productivity.

7. Future-Ready Design

The CB4 V10 is built with forward compatibility in mind, ensuring long-term value and adaptability to evolving mining requirements. Its future-ready design provides miners with a reliable solution that remains relevant as the industry advances.

Practical Applications of the CB4 V10 Control Board

The CB4 V10 control board is ideal for a wide range of mining scenarios, including:

• Upgrading Existing Rigs: Enhance the performance of older WhatsMiner models by replacing outdated control boards.
• New Installations: Incorporate the CB4 V10 into new mining setups to ensure optimal performance from the start.
• Large-Scale Operations: Its reliability and efficiency make it suitable for professional mining farms requiring consistent performance across multiple rigs.

Conclusion

The CB4 V10 control board is a game-changer for cryptocurrency mining operators, offering unmatched reliability, performance, and compatibility. Its advanced features and user-friendly design make it an essential component for maintaining efficient and profitable mining operations. By following the step-by-step guide provided in this article, you can easily replace the control board in your WhatsMiner M21s and unlock its full potential.

Investing in high-quality components like the CB4 V10 ensures your mining rigs remain competitive in an ever-evolving industry. Whether you’re upgrading existing equipment or setting up new operations, the CB4 V10 control board is a trusted solution that delivers tangible benefits for your mining endeavors.
