How to Install CB4 V10 Control Board in WhatsMiner M20s?

Cryptocurrency mining is a highly competitive and technically demanding industry where efficiency and reliability are paramount. As mining operations scale, the need for robust and professional-grade hardware becomes increasingly important. One such critical component is the CB4 V10 control board, a state-of-the-art solution designed specifically for the WhatsMiner ecosystem. In this article, we’ll walk you through the process of installing the CB4 V10 control board in a WhatsMiner M20s, highlighting its advantages and practical applications along the way.

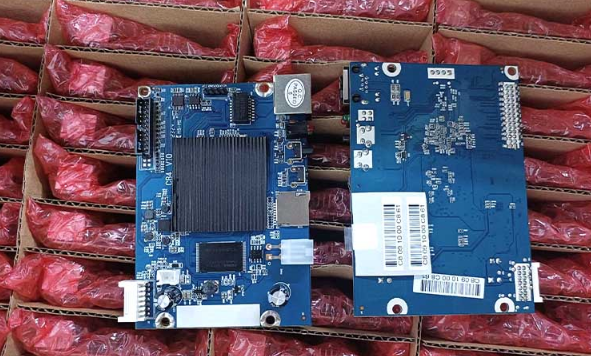

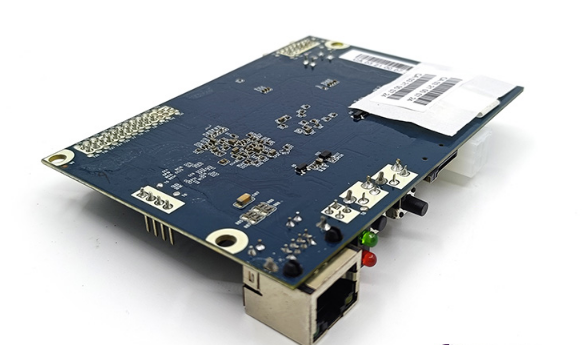

Introducing the CB4 V10 Control Board

The CB4 V10 control board is a high-performance, industrial-grade component engineered to optimize the functionality of WhatsMiner M-series rigs, including the M20s, M21s, M30s, M31s+, and M32 variants. Its advanced architecture ensures seamless integration, reliable operation, and enhanced mining efficiency, making it an indispensable tool for professional mining operators.

Key Features of the CB4 V10 Control Board

• Universal Compatibility: Designed to work seamlessly with the entire WhatsMiner M-series lineup, the CB4 V10 offers flexibility and consistency across different models.
• Industrial-Grade Reliability: Built with premium materials and components, it withstands the rigors of high-demand mining environments.
• Optimized Performance Architecture: Delivers high hash rates while maintaining superior energy efficiency, crucial for maximizing profitability.
• Professional-Grade Connectivity: Features an IEC C19 16A power connection and Ethernet networking for stable, uninterrupted operation.
• Thermal Excellence: Engineered to operate efficiently across a wide temperature range (-5°C to 35°C), ensuring reliability in varying environmental conditions.

Why Upgrade to the CB4 V10 Control Board?

For mining operators using the WhatsMiner M20s, upgrading to the CB4 V10 control board can significantly enhance operational performance. Here’s why:

1. Improved Efficiency: The CB4 V10’s optimized architecture ensures higher hash rates with lower power consumption, directly impacting profitability.
2. Enhanced Reliability: Its industrial-grade build quality minimizes downtime, ensuring continuous operation even in challenging conditions.
3. Simplified Maintenance: The board’s streamlined design makes installation and maintenance straightforward, reducing operational complexity.
4. Future-Ready Design: With forward compatibility in mind, the CB4 V10 ensures your mining rig remains adaptable to evolving industry demands.

Step-by-Step Installation Guide

Installing the CB4 V10 control board in your WhatsMiner M20s is a straightforward process when approached methodically. Below is a step-by-step guide to help you complete the installation successfully.

Tools and Equipment Needed

• Screwdrivers (Phillips and flathead)
• Anti-static wrist strap (recommended)
• CB4 V10 control board
• Power cables and network cables
• Workbench with adequate lighting

Step 1: Power Down and Disassemble the WhatsMiner M20s

Before beginning the installation, ensure your WhatsMiner M20s is powered off and disconnected from all power sources. Carefully remove the outer casing of the miner to access the internal components. Use the appropriate screwdrivers to detach the screws securing the casing.

Step 2: Locate and Remove the Existing Control Board

Once the casing is removed, locate the existing control board inside the miner. Disconnect all cables connected to the board, including power and network cables. Gently unscrew and remove the old control board, taking care not to damage surrounding components.

Step 3: Prepare the CB4 V10 Control Board

Unbox the CB4 V10 control board and inspect it for any visible damage. Ensure you have all necessary cables and connectors ready. If you’re using an anti-static wrist strap, attach it to prevent static discharge during the installation.

Step 4: Install the CB4 V10 Control Board

Position the CB4 V10 control board in the same location where the old board was mounted. Secure it using the provided screws, ensuring it is firmly in place. Reconnect the power cables to the IEC C19 16A connector and attach the network cable to the Ethernet port.

Step 5: Reassemble the WhatsMiner M20s

Once the CB4 V10 control board is securely installed, carefully reassemble the miner’s outer casing. Ensure all screws are tightened properly, and no cables are pinched or obstructed.

Step 6: Power Up and Configure

Reconnect the miner to the power source and turn it on. Access the miner’s interface via the DVI port or network connection to verify that the CB4 V10 control board is functioning correctly. Update any necessary firmware or settings to optimize performance.

Practical Benefits of the CB4 V10 in Action

After installing the CB4 V10 control board, mining operators can expect immediate and long-term benefits, including:

1. Consistent Performance: The board’s advanced thermal management ensures stable operation, even in fluctuating environmental conditions.
2. Reduced Downtime: Its industrial-grade reliability minimizes the risk of hardware failures, keeping your miner operational for longer periods.
3. Higher Profitability: By delivering higher hash rates with improved energy efficiency, the CB4 V10 directly enhances your mining ROI.
4. Ease of Maintenance: The simplified design reduces the time and effort required for routine maintenance and troubleshooting.

Tips for Maximizing the CB4 V10’s Potential

• Monitor Temperatures: Regularly check the miner’s operating temperature to ensure it stays within the optimal range (-5°C to 35°C).
• Update Firmware: Keep the control board’s firmware up to date to leverage the latest performance enhancements and features.
• Optimize Network Settings: Ensure your network configuration is stable to avoid connectivity issues that could impact mining efficiency.

Conclusion

The CB4 V10 control board is a game-changer for WhatsMiner M20s operators, offering unmatched reliability, efficiency, and ease of use. By following the installation guide outlined above, you can seamlessly integrate this advanced component into your mining setup and start reaping its benefits immediately. Whether you’re looking to boost profitability, reduce downtime, or future-proof your operations, the CB4 V10 is a worthwhile investment for serious mining professionals.

Upgrade your WhatsMiner M20s today and experience the difference that the CB4 V10 control board can make in your mining operations. Happy mining!
